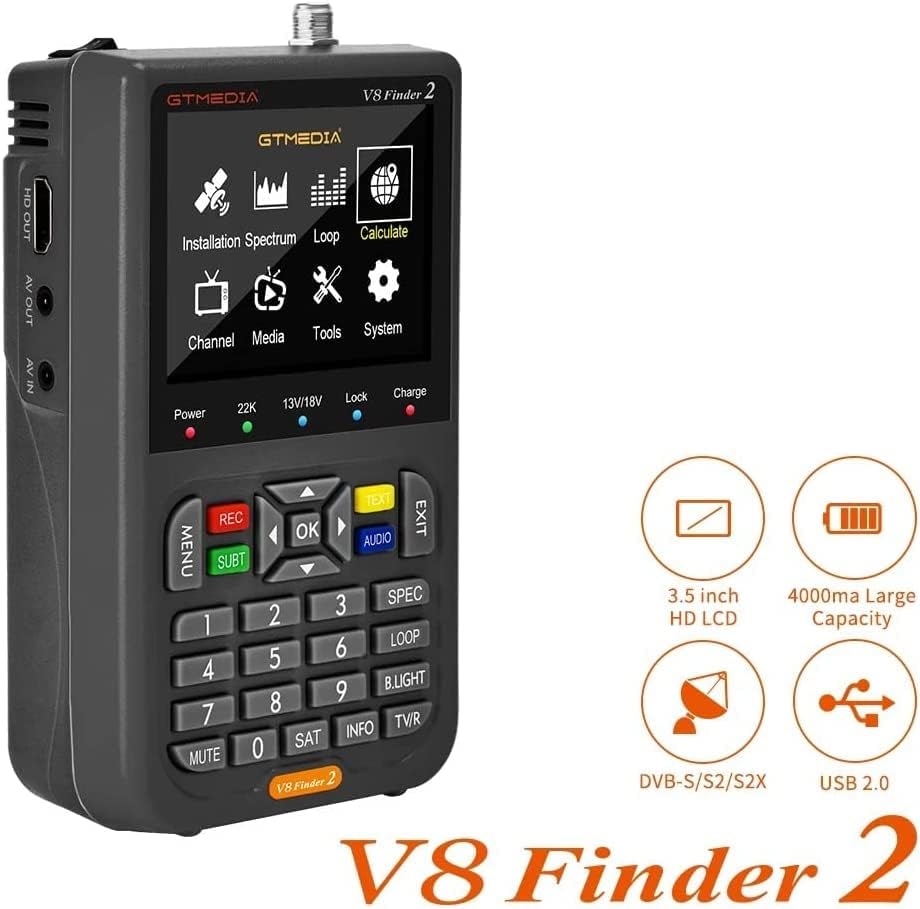

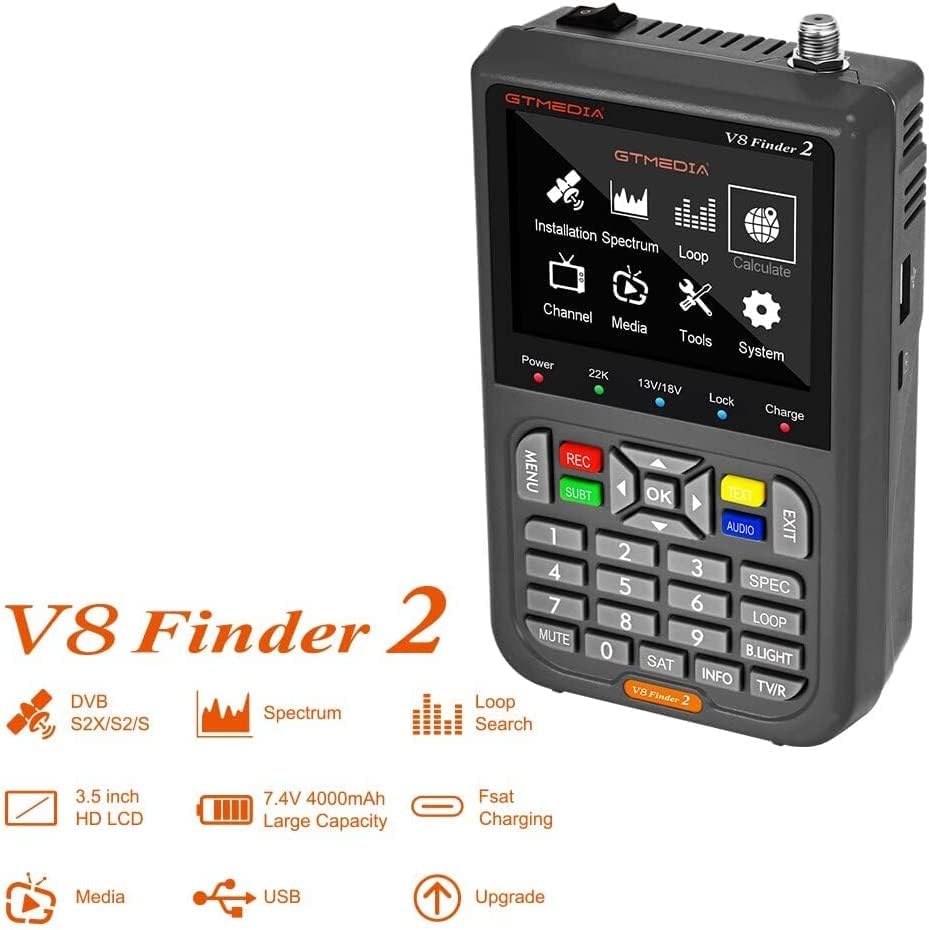

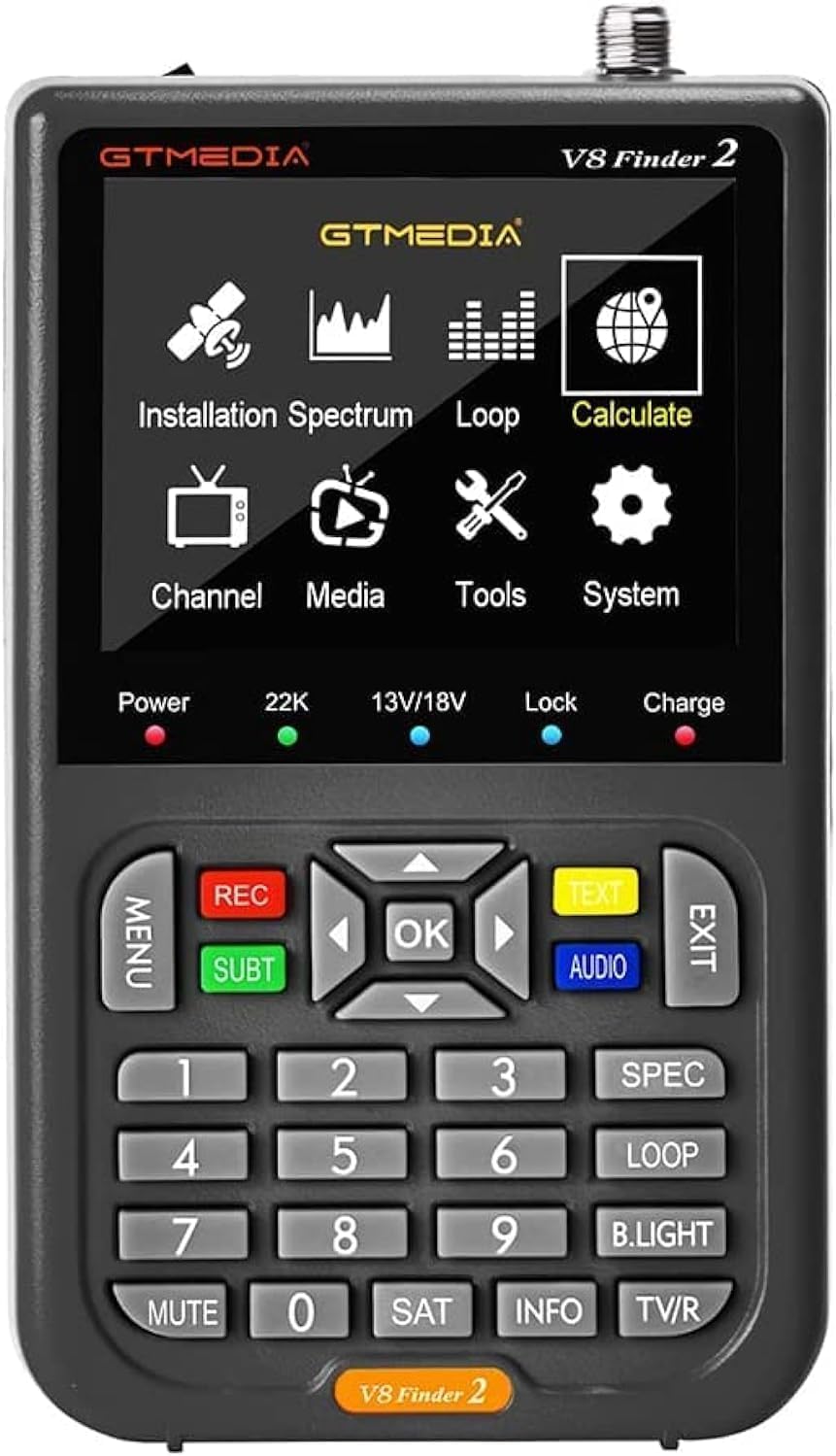

Neo Classic V8 Digital Satellite Finder Meter TV signal Finder Meter DVBS/S2/S2X HD Digital Signal Detector FTA 1080P HD Mpeg-2 MPEG-4 3.5 Inch LCD Receiver

◕‿◕Measurements of DVB-S/S2/S2X signals, H.264 Hardware decoding. Digital satellite finder meter for quick setup of satellite dishes. ◕‿◕Equipped with 3.5 inch high definition LCD screen. Li-Ion battery (7.4 V /4000 mAh) for up to 4-hour operating time. Sound alarm for locking signal, beep intergrated. ◕‿◕Support both AV in and AV/High Definition out function. Support 13V / 18V / LOCK status panel LED display directly. Support for DiSEqC1.0/1.1/1.2/USALSand 22 kHz Tone. Support batterypower display. ◕‿◕LNB short circuit protection. Equipped with one carry bag, compact size for easy carry round with you. Software upgrade via USB port support. ◕‿◕Channel Search: Channel search in automatic, manual and network search. OSD. Hardware Parameters: ✅Video: TV System: Automatic PAL/NTSC conversion Video Resolution: 720 * 576, 720 * 480, 1920 * 1080P ✅Audio: Type: MONO Sampling rates: 32KHz, 44.1KHz, 48KHz ✅Configuration: CPU: Ali M3S10 DDR: 1G Flash: 64M SPI Demodulation: M1502 + Tuner M3031 LCD Features: 3.5 inch TFT-LCD Screen Display Format: 320RGB * 240 Active area: 70.07(H) * 52.56 (V) MM LED Indicator: Support 7 different state different color LED display Button: 28 key operation ✅Rear Panel: LNB IN: Frequency Range 950MHz to 2150MHz High Definition OUT: up to 1080P AV OUT: 4-pin 3.5mm * 14mm jack 1 * USB port (Software upgrades for USB) DC IN: 12V, 1.5A ✅LNB Input: Connector: F type, male Frequency Range: 950MHz-2150MHz ✅Demodulator: Front End: QPSK, QPSK Modulation Range: 2Mbps-45Mbps SCPC and MCPC Capable: Yes Spectral Inversion: Auto Conversion ✅ Correction Rate: 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Carrier Frequency Acquisition Range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 Battery: 7.4V 4000mAh Li-ion Battery Powersupply: DC 12V / 1.5A (Input 100-240V, 50/60Hz)

• Brand: Neo Classic
• Manufacturer: Neo Classic
• Batteries included: True
• Batteries required: True
