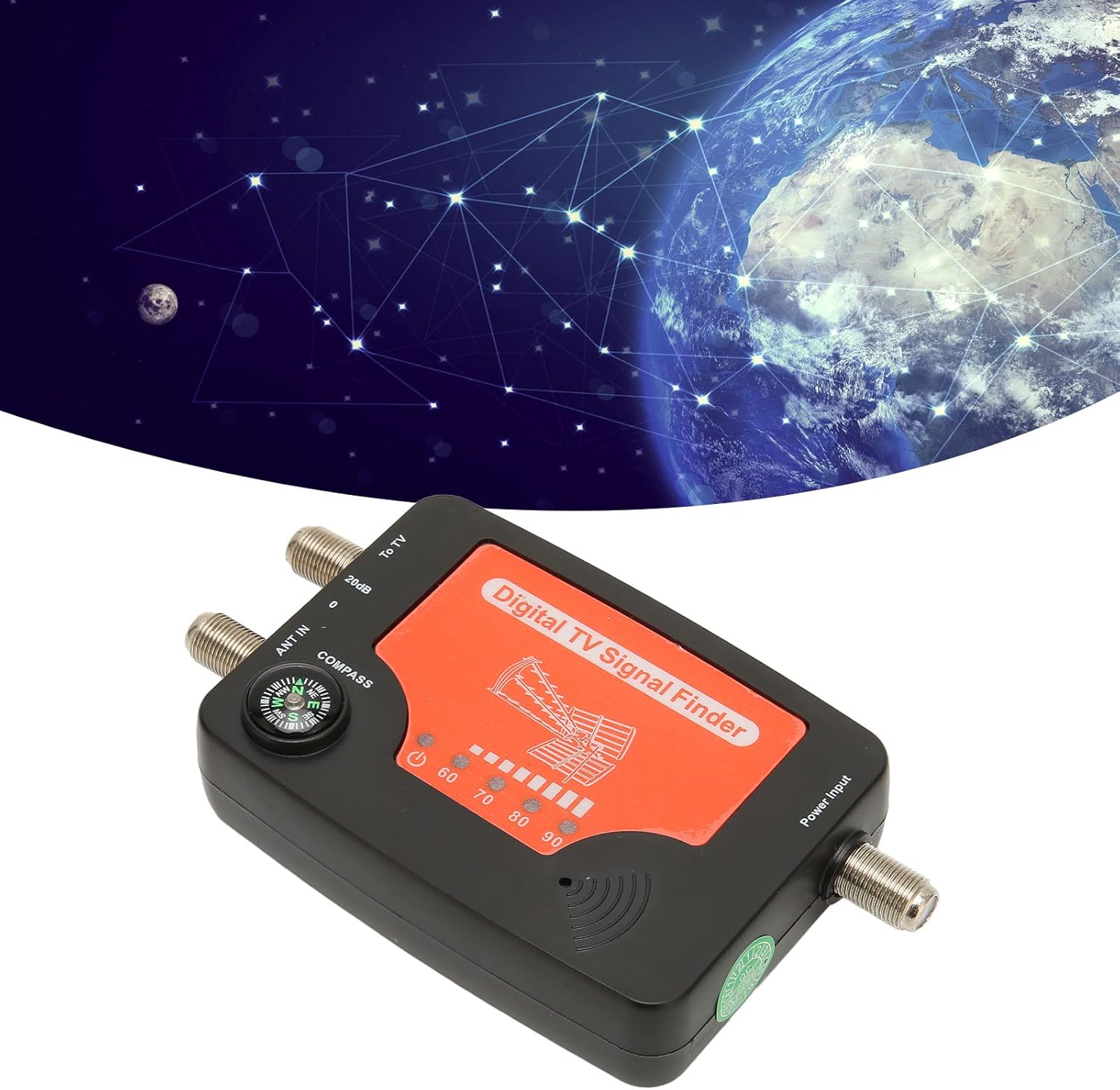

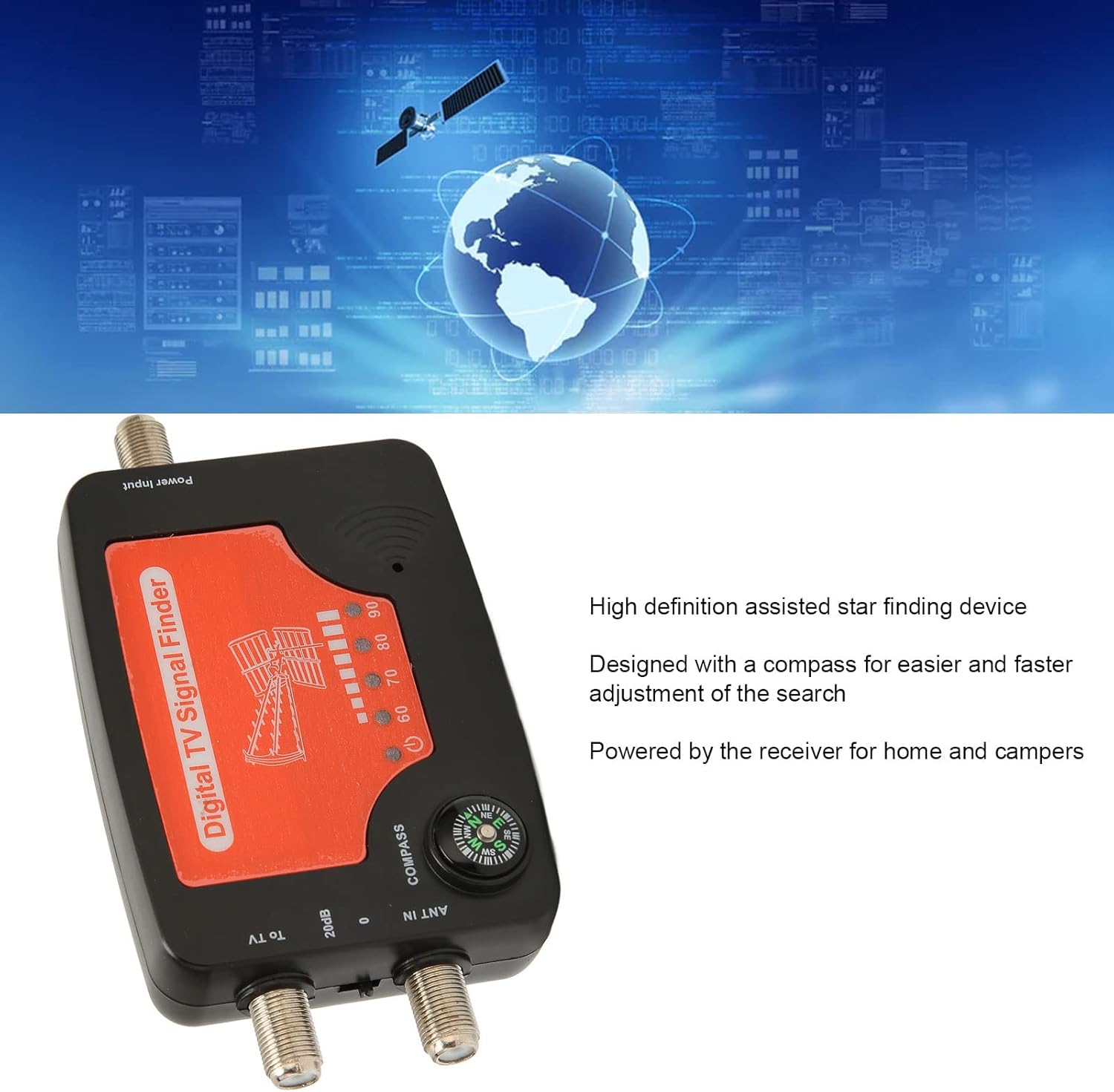

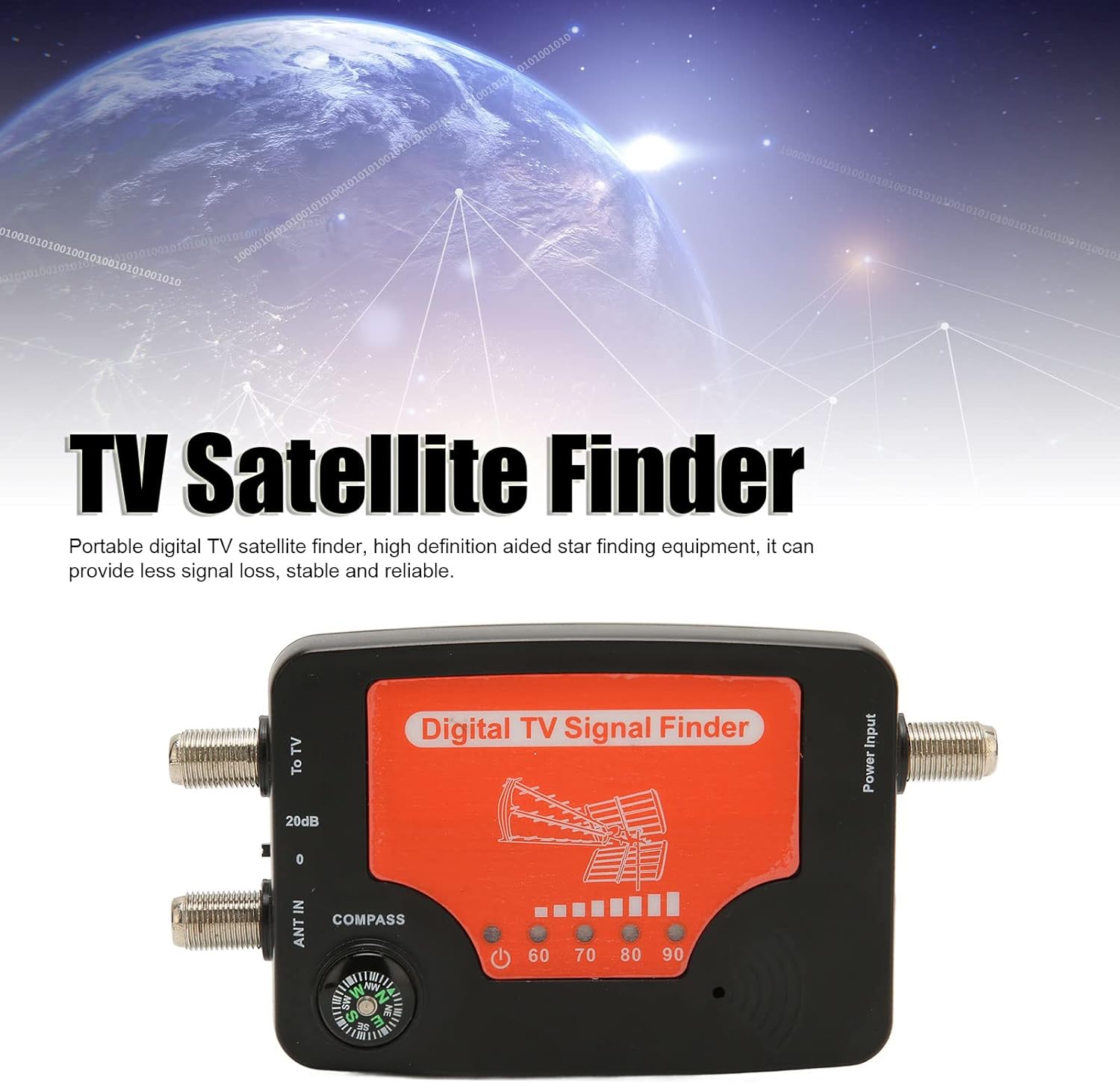

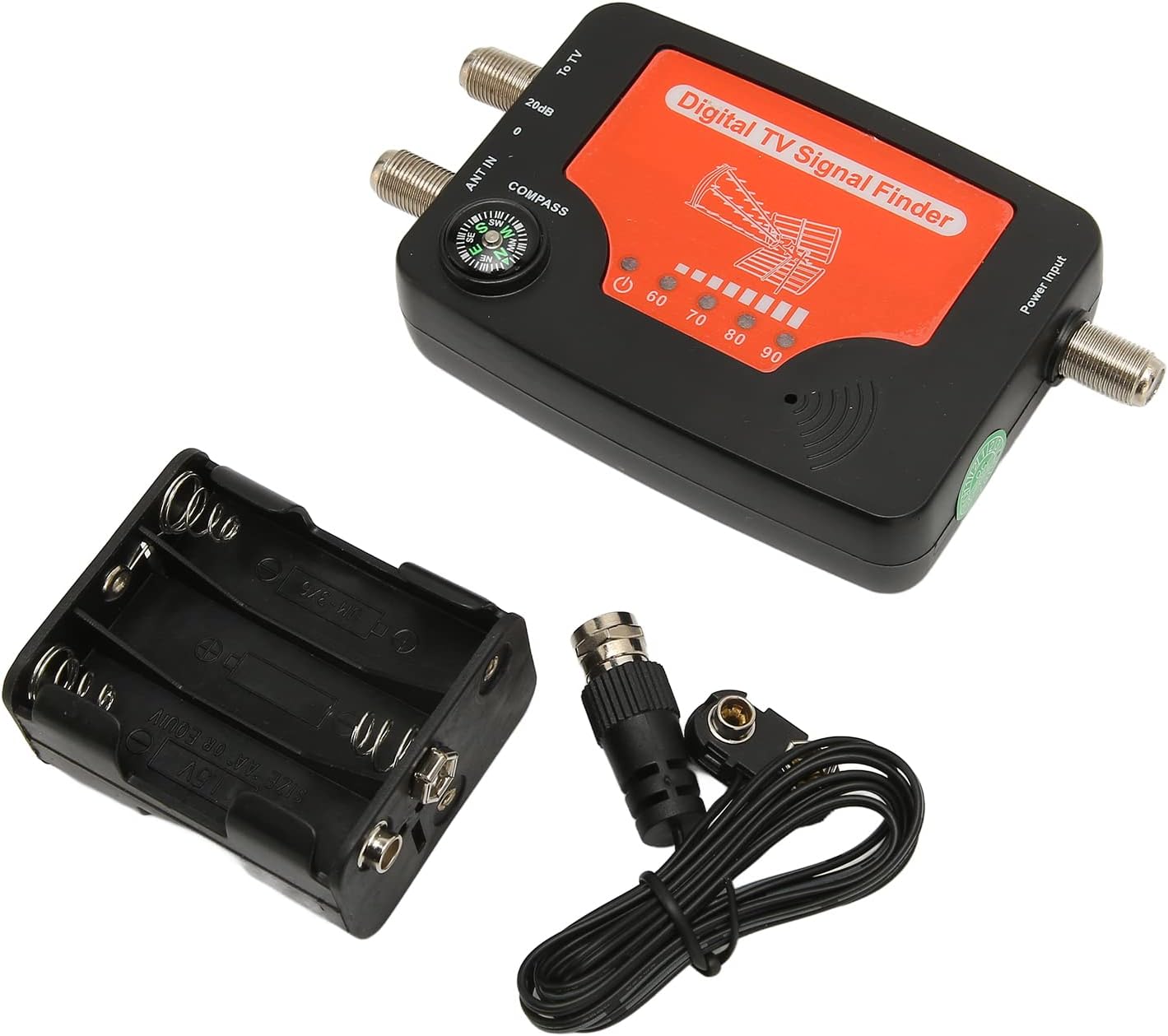

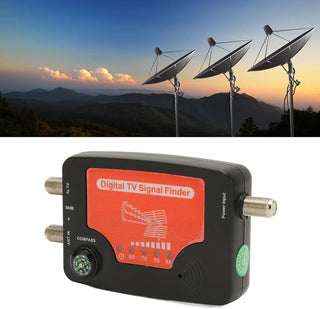

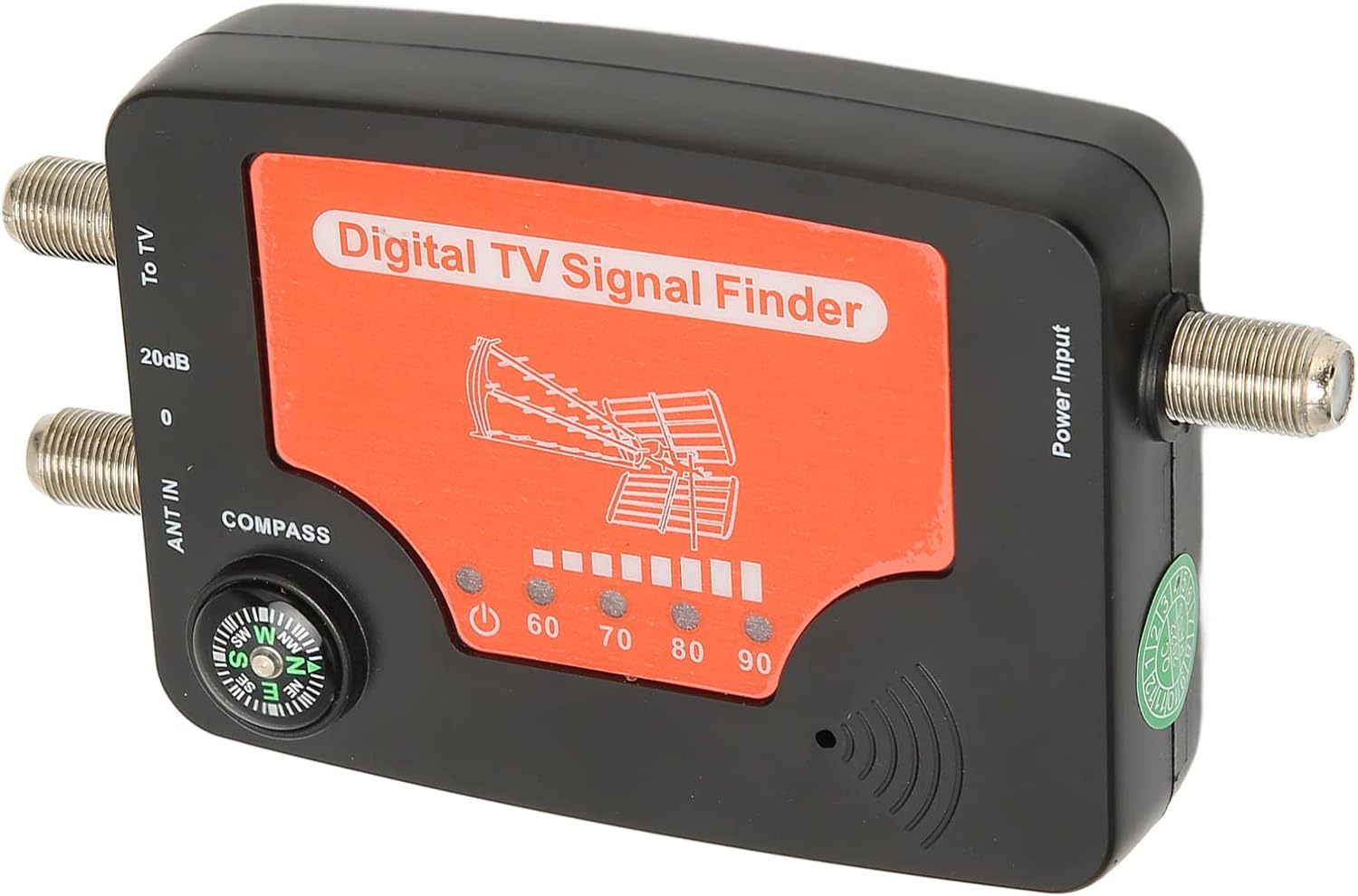

Digital Satellite Finder Meter, 57 to 117DBUV Satellite TV Finder, 40 to 862MHz VHF UHF Frequency Response, Sensitive TV Satellite Finder for TV, Home, Campers

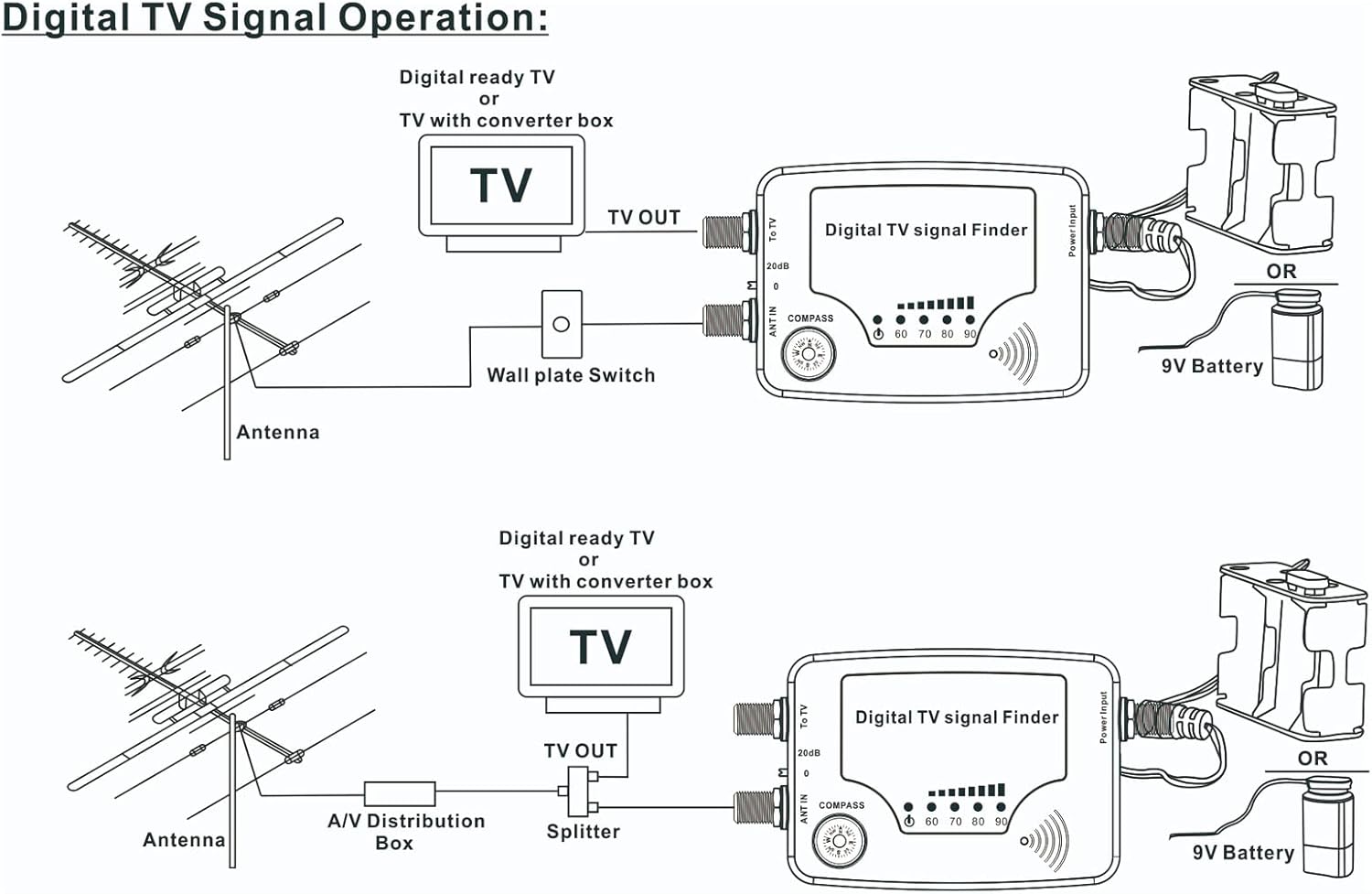

Specification: Item Type: Digital TV Satellite Finder Material: Plastic Product Parameters: VHF UHF Frequency Response: 40-862MHz (CH2-CH69) Range: 57-117DBUV Battery Type: 6 x AA Batteries (Not Included) Power Requirements: 5V DC 40mA Note: For faster determination of different directions, please use the aprofessionAcompass or the mobile app. Function: 1. Mounting Connection Port Digital TV Finder 2. TV Connection Port 3. Power Input Connection Port 4. ((for Reference Purposes)) 5.DC9V Power Supply Indicator 6. TV Strength Indicator 7. ATT Switch (when the switch is switched to 20dB, this means that 20dB is added to the corresponding number of the existing indicator, which is the current strength. For example, if the LED is 70 at this point. ( strength is greater than 90DBUV.) Allows the positioning scan channel to be filled in with the original. Operating instructions: 1. Connect the finder to the display in one of two ways. 2. Connect the dcjack to the power supply and rotate the power indicator LED red. 3. Select 0 for ATT switch. 4. Cone the antenna until the maximum number of LEDs is illuminated 5. Select 20DB for the ATT switch, then rotate the antenna to illuminate the blinking, resulting in reception. 6. Use the TV or converter box instructions to scan for channels. Note: The star finder is for antenna positioning only, not for converters. Package List: 1 x Digital TV Satellite Finder 1 x Battery Kit (Battery Not Included) 1 x Data Cable 1 x Manual

• Superior Performance: Portable digital TV satellite finder, high definition aided star finding equipment, it can provide less loss, stable and reliable.
• Design: Digital satellite finder uses a design for easier and faster adjustment of the search.
• Power Supply: Satellite meter is powered by the receiver and is suitable for home and campers.
• Easy to Connect: TV digital satellite finder connects to your LNB and receiver to the satellite finder.
• High Sensitivity: Satellite strength meter keeps track of the clearest settings of the satellites you wish to listen to.
