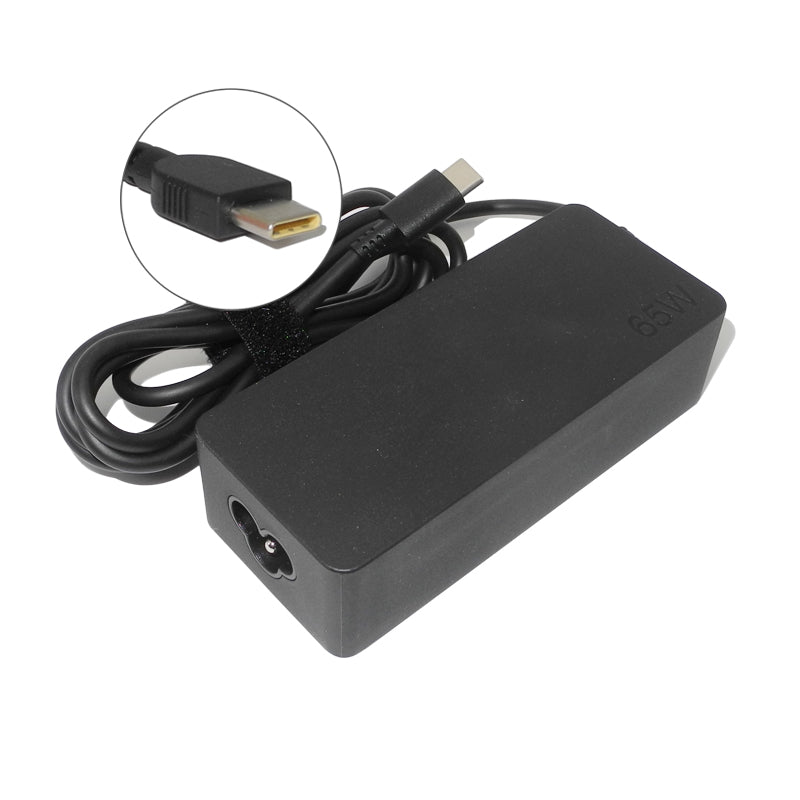

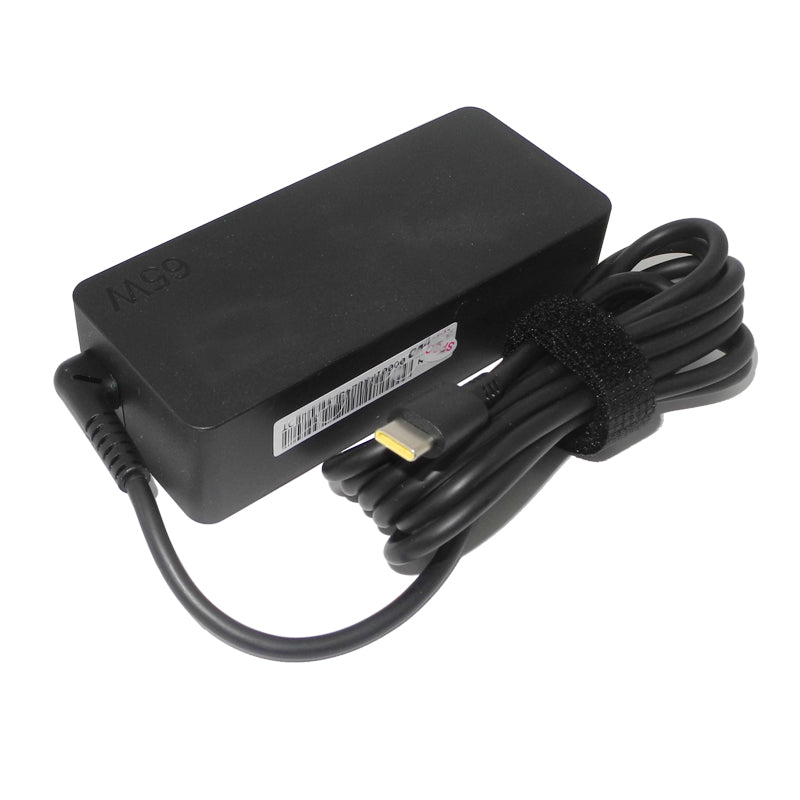

USB Type C Ac Power Adapter Charger For Thinkpad X1carbon Yoga5 X270 X280 T580 P51s P52s E480 E470

1.Item Specification:

1)Input: 100 to 240V AC,1.0-0.6A, 50 to 60Hz (worldwide use)

2)Output:DC20V 3.25A

3)power: 65W

4) Connector:USB Type-C

2.Protections

1)over voltage protection: 120%min

2)over current protection: 120%min
3)over load  protection hiccp mode,auto-recovery

4)Short-circuit protection: automatic recovery

5)Load regulation: ±5%

3.Environmental requirement

1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) ­

5)Insulation resistance: DC 500V 100MΩ (minimum)
