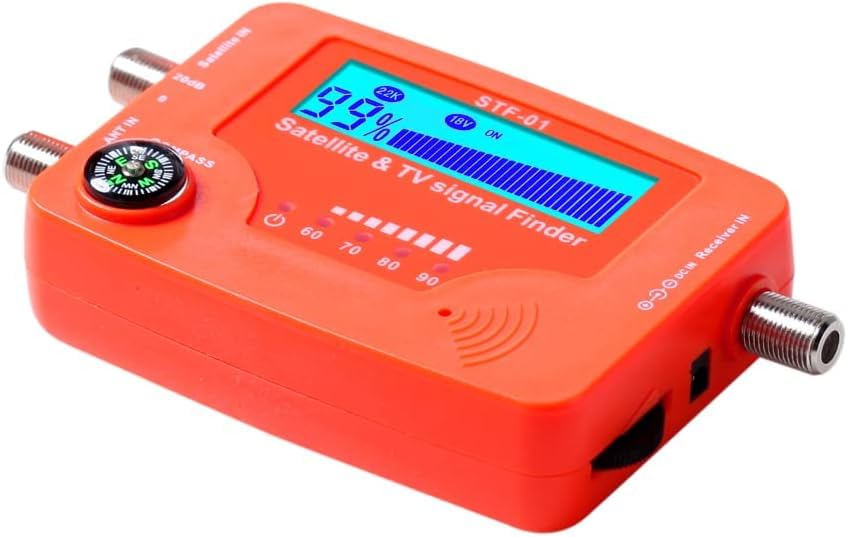

WANGCL TV Satellite Finder Professional High Sensitivity Compass Design Satellite Signal Meter for TV Satellite Signal Strength Meter

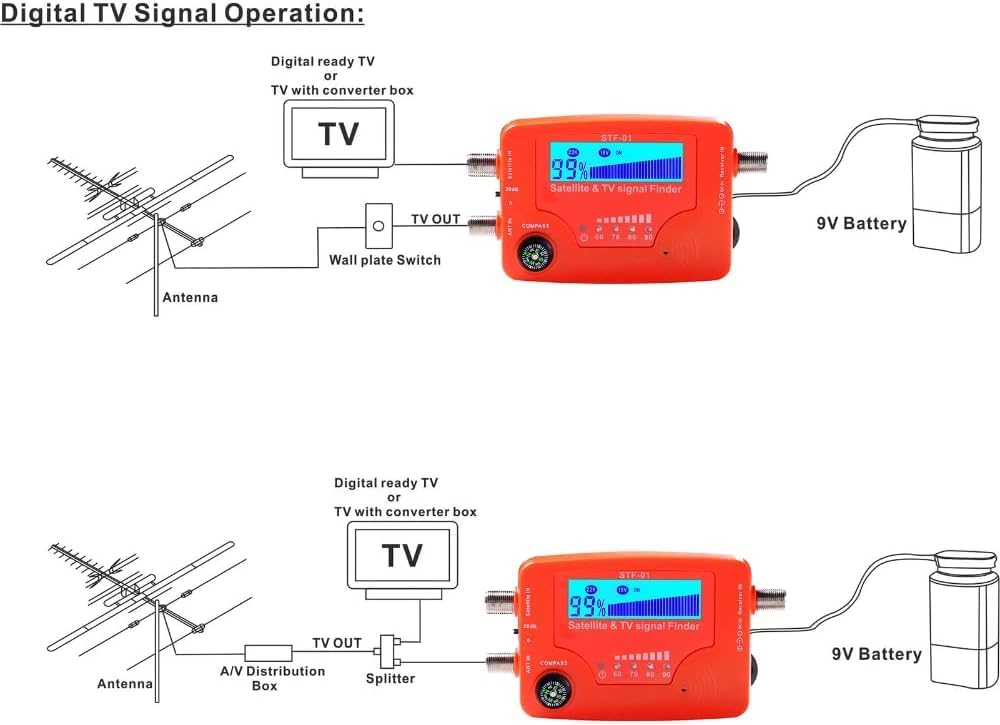

Specification:Item Type: Digital TV Satellite FinderMaterial: PlasticProduct Parameters:VHF UHF Frequency Response: 40-862MHz (CH2-CH69)Signal Range: 57-117DBUVBattery Type: 6 x AA Batteries (Not Included)Power Requirements: 5V DC 40mAFunction:1. Mounting Connection PortDigital TV Signal Finder2. TV Signal Connection Port3. Power Input Connection Port4. Compass ((for Reference Purposes))5.DC9V Power Supply Indicator6. TV Signal Strength Indicator7. ATT Switch (when the switch is switched to 20dB, this means that 20dB is added to the corresponding number of the existing indicator, which is the current signal strength. For example, if the LED is 70 at this point. (Signal strength is greater than 90DBUV.)Allows the positioning scan channel to be filled in with the original.Operating instructions:1. Connect the finder to the display in one of two ways.2. Connect the dc jack to the power supply and rotate the power indicator LED red.3. Select 0 for ATT switch.4. Cone the antenna until the maximum number of LEDs is illuminated.5. Select 20DB for the ATT switch, then rotate the antenna to illuminate the blinking, resulting in signal reception.6. Use the TV or converter box instructions to scan for channels.Note: The star finder is for antenna positioning only, not for signal converters.Package List:1 x Digital TV Satellite Finder1 x Battery Kit (Battery Not Included)1 x Data Cable1 x Manual

• Portable digital TV satellite finder, high definition aided star finding equipment, it can provide less signal loss, stable and reliable.
• Digital satellite finder uses a compass design for easier and faster adjustment of the search.
• Satellite signal meter is powered by the receiver and is suitable for home and campers.

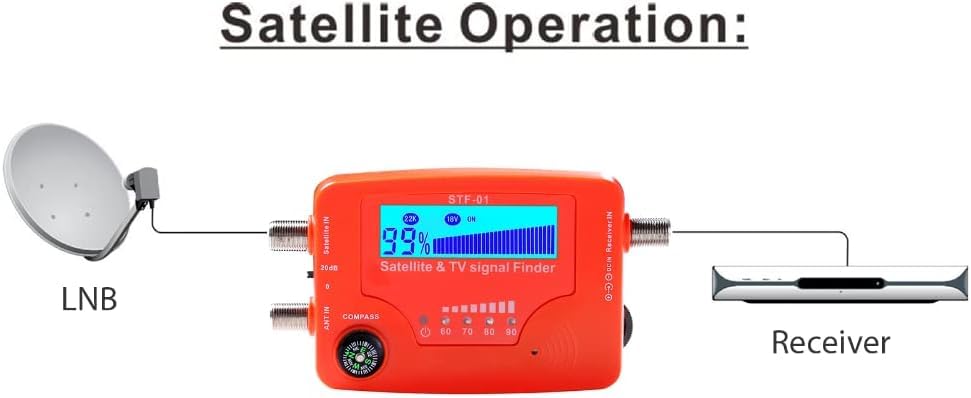

• TV digital satellite finder connects to your LNB and receiver to the satellite finder.
• Satellite signal strength meter keeps track of the clearest settings of the satellites you wish to listen to.
